Product Details
Exlicon Lock - Pentagon Tool
Quick and Easy 1-4 Point Perspectives in No Time
*This is a pre-order item, and we will ship it in late April 2025.
INCLUDE:
1 x Exlicon Lock Pentagon Tool
Exlicon Lock Pentagon Tool Features:
➤ Your Simple Guide to Perfect One to Four Point Perspective
➤ Your Perfect Perspective Suite
➤ Your Go-To Palm-Sized Toolset for Simple 1-4 Point Perspectives
➤ Simple Guide to Perfect 1-4 Point Perspective, Seamlessly Locked Together.
Precision Through Perspective Drawings
Perspective drawing - a technique in Art, to portray three-dimensional objects and environments on a two-dimensional surface, mimicking human visual perception.
The Exlicon Lock - Perspective Tool Set that makes perspective drawing more fun, precise and proportional.

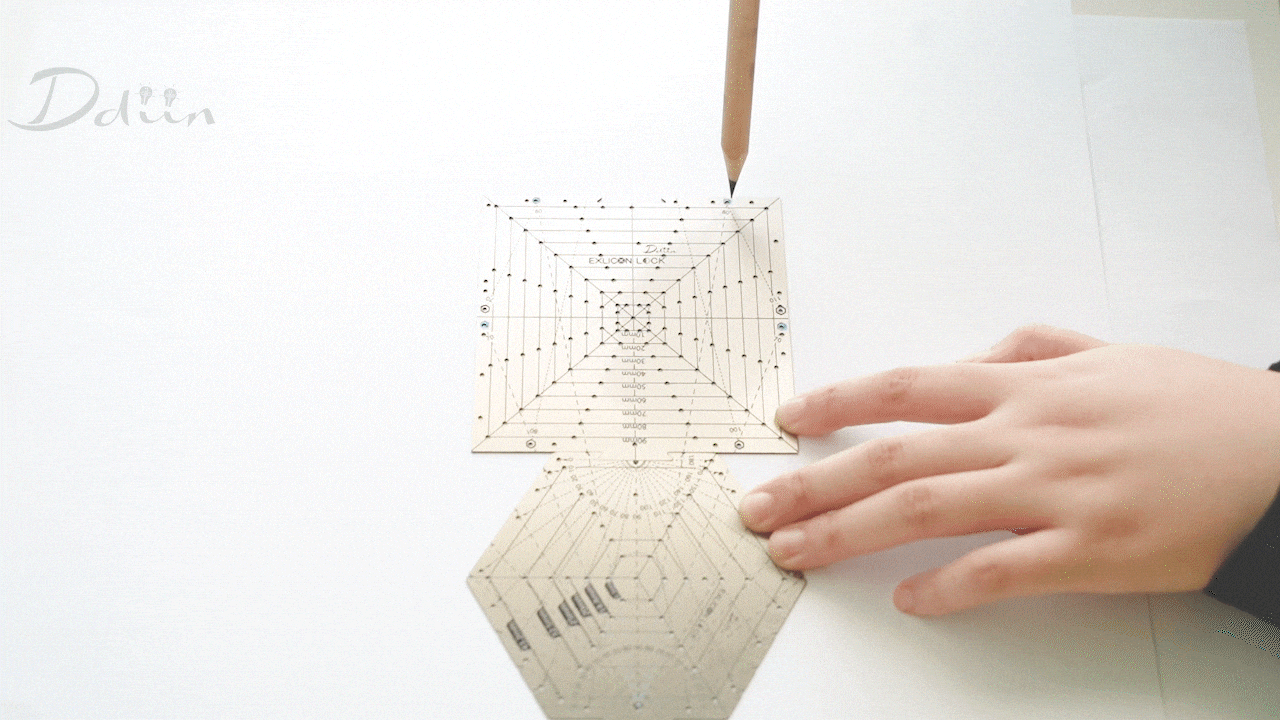

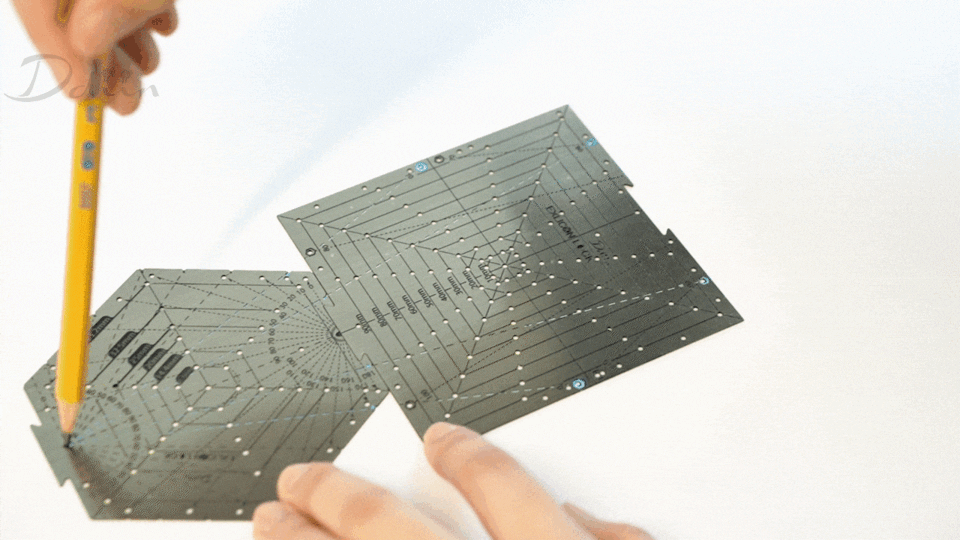

One to four point perspective lines can be formed when the square tool is connected either to the pentagon or hexagon tool. The unique feature of this tool set makes it a perfect fit for diverse design tool disciplines like product, architecture, and interior design. Particularly addresses to their specific needs, offering precise and accurate visualization.
Combined : wider + further Individual: small with 10 degree
Fit on A3 paper.

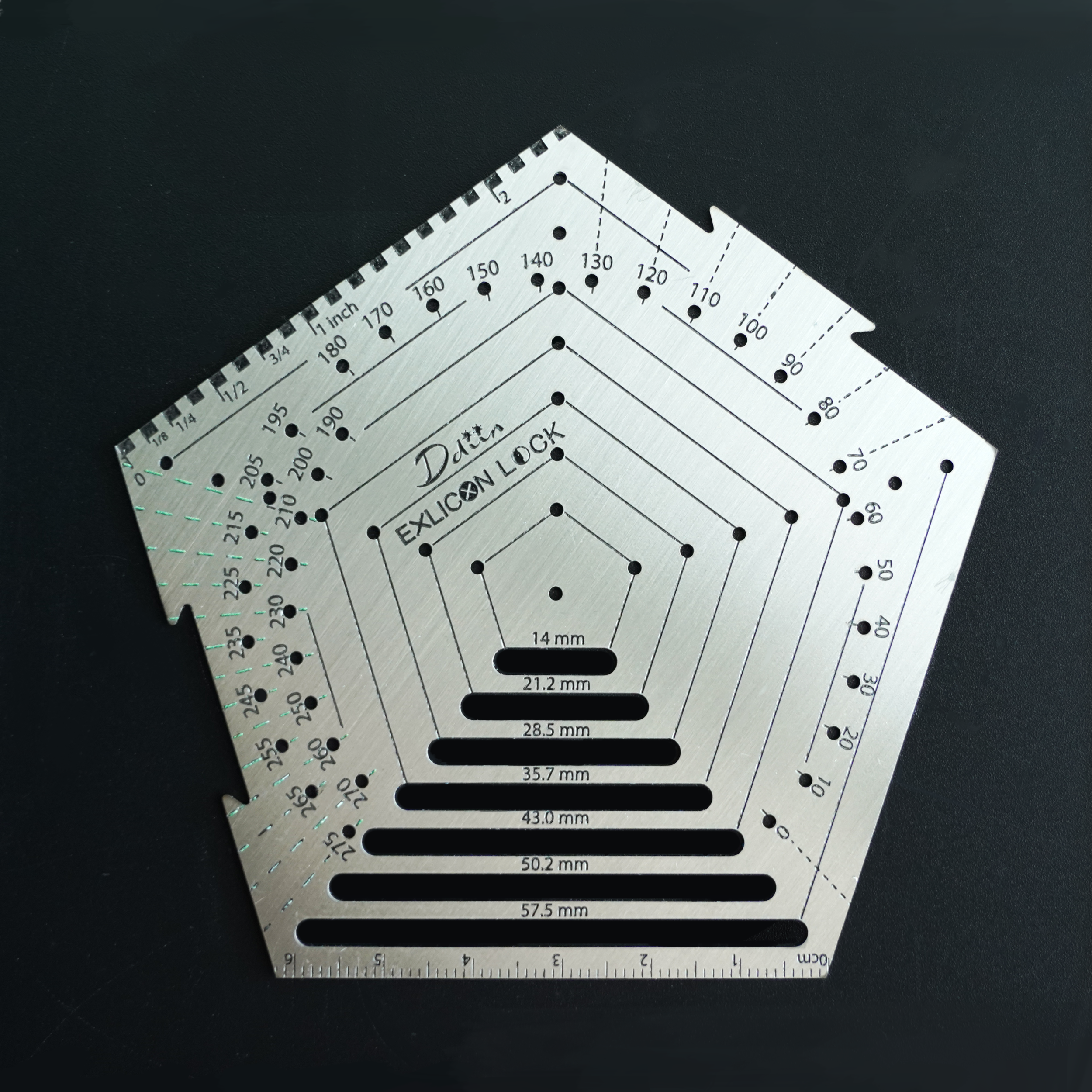

Exlicon Lock Tool Set: Pentagon Tool
What can it draw?
The holes and lines on the pentagon tool allow for the drawing of different sizes of perfect shapes, including pentagon, circle, and isosceles triangle.
There are two sets of protractors ranging from 0° to 275° degrees in 5° and 10° degree increments.
Using center as midpoint, it can create perspectives that are:
- drawn with a 5° OR 10° degree increments
- a combination of both 5° AND 10° degree increments
- assist in drawing various kinds of perspectives
Rulers in Metric and Imperial System:
There are two rulers available in the Pentagon tool:
- A centimeter ruler with a length of 6 cm / 60 mm.
- An inch ruler with a length of 2.44 inches, displays, measurements in checked marks.
The tool has 7 line holes, each with a 3 mm width and ranging in length from 14 mm to 57.5 mm, designed for easy use with marker pens.
What is the size of the Pentagon Tool?
The pentagon tool is designed 100 mm x 95 mm.
- Side Length is 61.8 mm.
- Pentagon Apothem is 42.5 mm.
- The Circumcircle Radius is 52.5 mm.

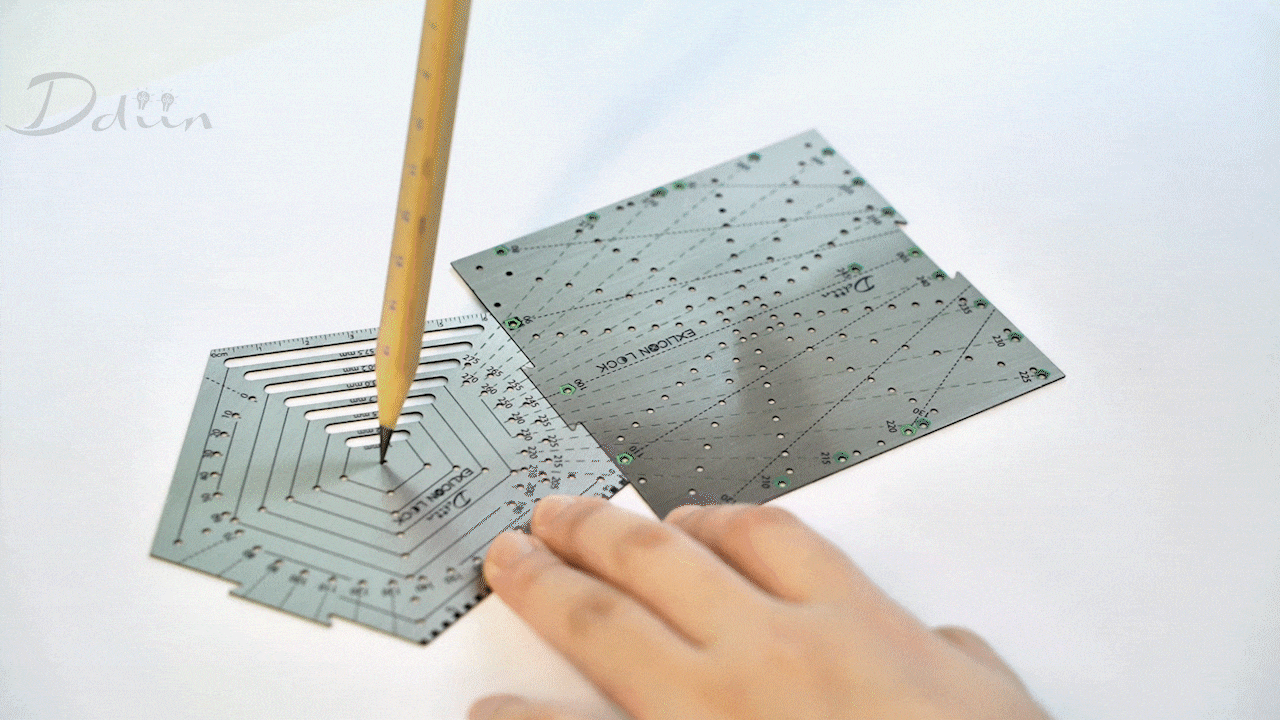

Points to note when using Square + Pentagon Tool:
*All Tools in the Exlicon Lock Tool Set can be used individually.
*The Square Tool can only be connected to one tool (Pentagon OR Hexagon tool) at a time.
Pentagon:
*Pentagon Tool needs to attach to the side with Pentagon Markings on the Square Tool of the Square Tool to create perspective drawing.

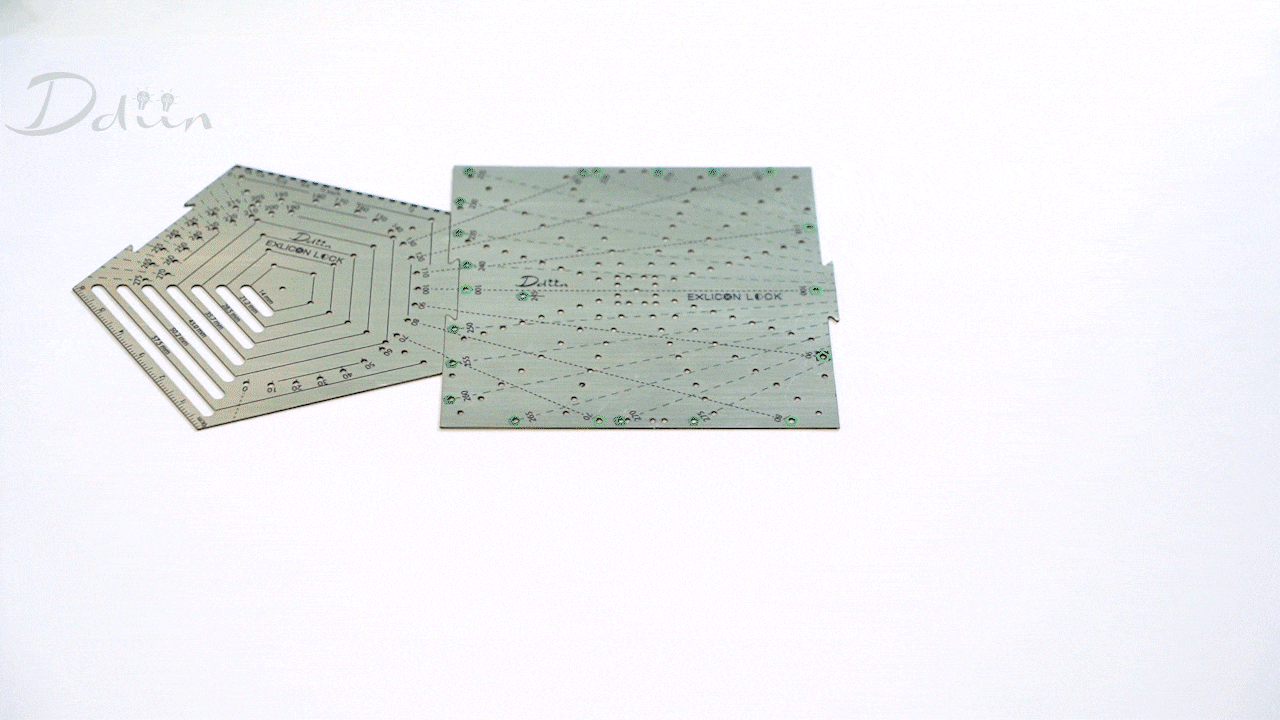

You are also able to create a combined 5° + 10° degrees together. This can be created when the Pentagon Tool is first placed and locked on the left side, then swiftly placed and locked on the right side of the Square Tool.
